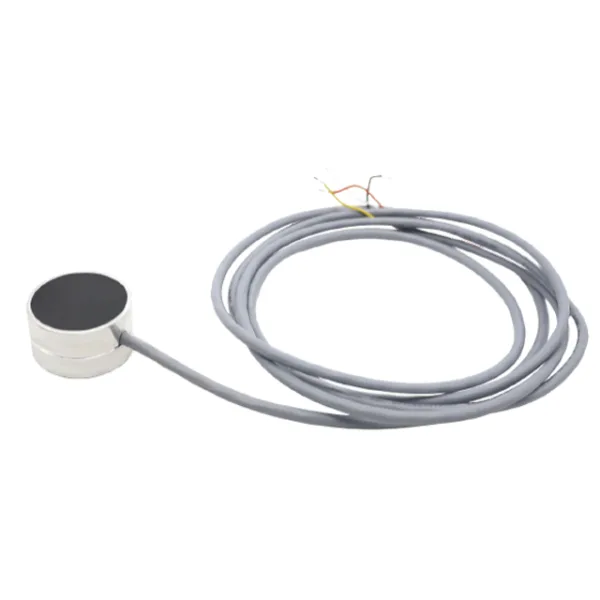

KUS-W33 Patch-Type Underwater Ranging Sensor
Introduction
Underwater distance measurement, underwater obstacle avoidance, external liquid level measurement
Technical Specifications
| Product name | KUS-W33 Patch-Type Underwater Ranging Sensor |
|---|---|
| Power supply | 10.8VDC～26VDC |
| Range | 0.1~8m |
| Measurement accuracy | 1%~3%(maximum range) |
| Emission angle | 4.6°±0.5° |
| Communications | ModBus-RS485 standard protocol |
| Ambient temperature | -20℃～60℃ |
| Protection level | IP68 |
| Maximum operating depth | 50m~150m |
| Probe cable | 4-core shielded cable |
Application Fields
| Product name | KUS-W33 Patch-Type Underwater Ranging Sensor |
|---|---|
| Power supply | 10.8VDC～26VDC |
| Range | 0.1~8m |
| Measurement accuracy | 1%~3%(maximum range) |
| Emission angle | 4.6°±0.5° |
| Communications | ModBus-RS485 standard protocol |
| Ambient temperature | -20℃～60℃ |
| Protection level | IP68 |
| Maximum operating depth | 50m~150m |
| Probe cable | 4-core shielded cable |
