KWS-110 Online COD Sensor
1.Introduction
KWS-110 model UV254 COD sensor is based on the principle of ultraviolet absorption method, combined with a lot of application experience, has carried out a number of upgrades and innovations on the basis of the previous generation, not only smaller in size, but also integrates the original split cleaning brush into one, making installation, It is more convenient to operate and has higher reliability.
The KWS-110 model UV254 COD sensor does not require reagents, is pollution-free, and is more economical and environmentally friendly. It can monitor water quality online for a long time, measure and output COD, BOD, TSS and temperature at the same time. The sensor integrates a TSS detection light source, which can automatically compensate for the interference of the water sludge to be measured. The sensor is equipped with an automatic cleaning brush device, and it still has excellent stability even for long-term monitoring.
2.Features
- Digital sensor, digital RS-485 output, Modbus protocol;
- No reagents, no pollution, more economical and environmentally friendly;
- It can measure parameters such as COD, BOD, TSS and temperature;
- Automatically compensates for sludge disturbance, with excellent test performance;
- With self-cleaning brushes to prevent biofouling and longer maintenance intervals.
3.Dimension
(1)Standard range

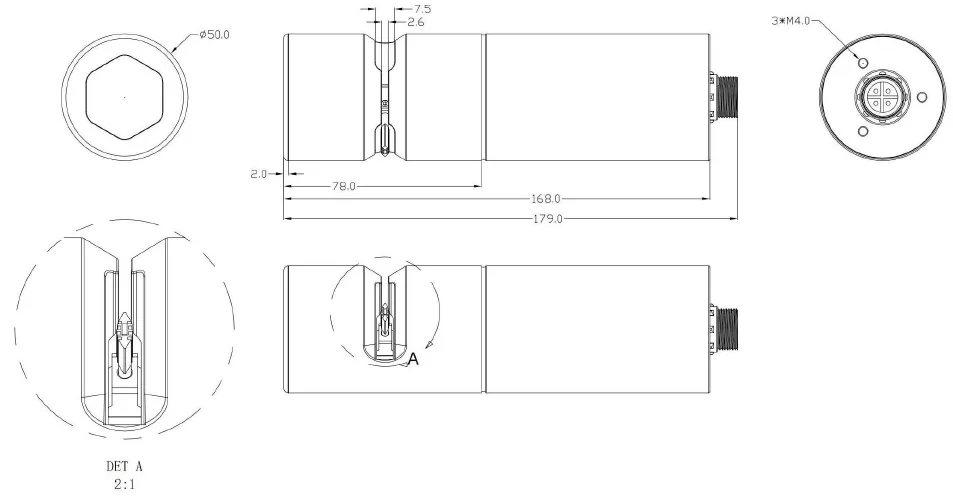

(2)Large range
| Model | KWS-110 | KWS-111 |
|---|---|---|
| COD Range | 0 to 500mg/L equiv. KHP | 0 to 1500mg/L equiv. KHP |
| COD Accuracy | ±5% | ±5% |
| COD Resolution | 0.01mg/L | |
| BOD Range | 0 to 400mg/L | 0 to 1200mg/L |
| BOD Resolution | 0.01mg/L | |
| TSS Range | 0-3000mg/L | 0-5000mg/L |
| TSS Accuracy | ±5% | ±5% |
| TSS Resolution | 0.01 mg/L | |
| Material | 316L (Titanium customizable) | |
| Operating Temperature | 0~50℃ (no freezing) | |
| IP Rating | IP68 | |
| Output | RS485, Modbus | |
| Power Supply | DC12V-24V, ≥1A | |
| Calibration | Support one point and two-points calibration | |
| Max. Pressure | 3 bar | |
| Cable Length | 10m | |
