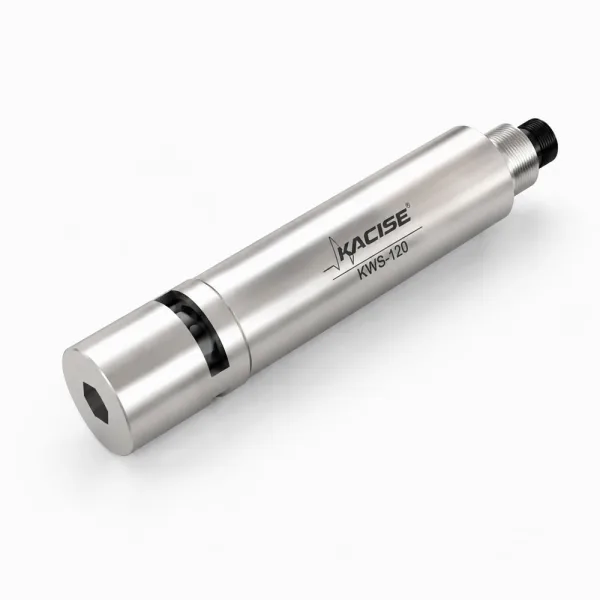

KWS-120 COD Sensor
Introduction
Based on the UV254 absorption method, the KWS-120 COD sensor reliably measures COD and turbidity in water. Multi-wavelength visible light absorbance combined with a patented algorithm effectively reduces interference from suspended solids in complex water environments. The sensor features an auto-cleaning brush with configurable cleaning modes for energy-efficient long-term deployment.
Features
- Sensitive and stable UV signal detection
- Dual-algorithm correction for suspended solids interference
- Multiple optical window cleaning modes for various deployment scenarios
- China and US patented technology with multi-parameter support
- Standard 4-wavelength configuration, expandable to 10-wavelength
- Digital RS485 output with MODBUS protocol
- 316L stainless steel housing (customizable)
- IP68 protection rating for submerged operation
Dimensions
O.D. 33 mm, NPT 3/4 inch thread. The sensor is designed for easy installation via standard pipe fittings and supports both immersion and flow-through mounting configurations.
| Parameter | Specification |
|---|---|
| Measurement | COD, Turbidity |
| COD Range | 0-250 / 0-500 / 0-1000 mg/L |
| COD Accuracy | ±5% |
| Turbidity Range | 0-400 / 0-800 / 0-1600 NTU |
| Turbidity Accuracy | ±5% |
| Optical Path | 10 / 5 / 2.5 mm |
| Resolution | 0.01 |
| Probe Size | O.D. 33 mm, NPT 3/4" thread |
| Operating Temp | 0 to 50 ℃ |
| Protection Grade | IP68 |
| Housing Material | 316L Stainless Steel (customizable) |
| Communication | RS485, MODBUS Protocol |
| Avg Power | ≤ 0.2 W (no brush), ≤ 0.6 W (brush), ~4 W brush start |
| Supply | DC 9~24 V, 1 A |
