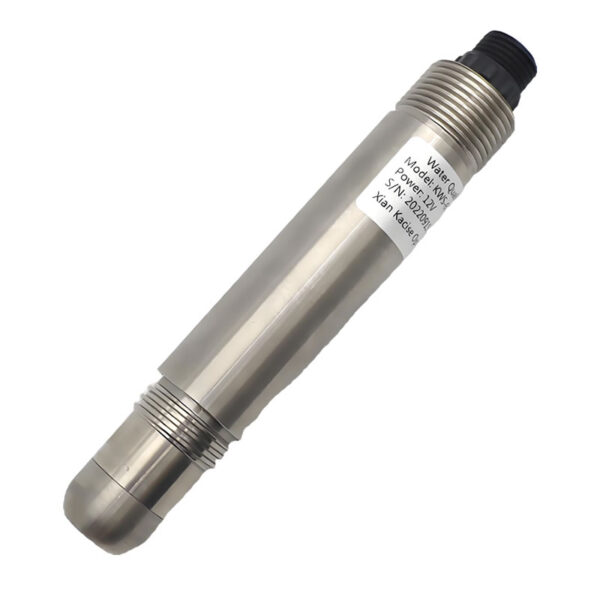

KWS-600 Online Fluorescence Dissolved Oxygen Sensor
Introduction
The Kacise KWS-600 online fluorescence dissolved oxygen sensor uses high-performance fluorescent materials. No oxygen consumption, no flow rate limitation, no electrolyte, no maintenance and calibration, no hydrogen sulfide interference, and excellent stability. Built-in temperature sensor, automatic temperature compensation. RS485 output, can be networked without controller.
Feature
- Digital sensor, RS485 output, support MODBUS
- No membrane, no electrolyte, no interference, no frequent calibration
- No oxygen consumption, no flow rate limitation
- Built-in temperature sensor, automatic temperature compensation
Dimensions
| Parameter | Specification |
|---|---|
| Range | 0-20mg/L or 0-200% saturation |
| Accuracy | ±1% |
| Response Time | 20 sec |
| Ip Grade | IP68 |
| Sensor Drift | <1% per year |
| Operating Temperature | 0~50℃ |
| Temperature Accuracy | ±0.2℃ |
| Output | RS485, Modbus |
| Power Supply | DC9-24V ±5%, current<50mA |
| Temperature Sensor | NTC |
| Casing Diameter | 26mm |
| Installation | G3/4, submersible |
| Cable Length | Standard 10m, customizable 5m, 15m and 30m |
| Fluorescent Cap Lifetime | 1 year (under normal use) |
| Casing Material | Titanium |
